The DMainWindow class provides a main application window. 更多...

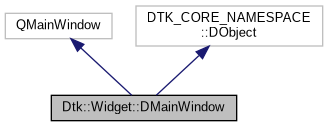

类 Dtk::Widget::DMainWindow 继承关系图:

Dtk::Widget::DMainWindow 的协作图:

Public 槽
void	setWindowRadius (int windowRadius)
	DMainWindow::setWindowRadius　设定窗口的圆角 windowRadius　窗口的圆角值

void	setBorderWidth (int borderWidth)
	DMainWindow::setBorderWidth 设定边框的宽度 borderWidth　边框的宽度

void	setBorderColor (const QColor &borderColor)
	DMainWindow::setBorderColor 设定边框的颜色 borderColor　边框的颜色

void	setShadowRadius (int shadowRadius)
	DMainWindow::setShadowRadius 设定阴影区域的圆角 shadowRadius　阴影区域圆角大小

void	setShadowOffset (const QPoint &shadowOffset)
	DMainWindow::setShadowOffset 设定阴影区域的偏移距离 shadowOffset　阴影区域的偏移距离

void	setShadowColor (const QColor &shadowColor)
	DMainWindow::setShadowColor 设定阴影的颜色 shadowColor　阴影的颜色

void	setClipPath (const QPainterPath &clipPath)
	DMainWindow::setClipPath 设定裁剪路径 clipPath　裁剪的路径

void	setFrameMask (const QRegion &frameMask)
	DMainWindow::setFrameMask 设定边框的mask区域 frameMask mask区域

void	setTranslucentBackground (bool translucentBackground)
	DMainWindow::setTranslucentBackground 设定时候擦除背景 translucentBackground true擦除背景　false不擦除背景

void	setEnableSystemResize (bool enableSystemResize)
	DMainWindow::setEnableSystemResize　设定是否允许系统调整窗口大小 enableSystemResize　true允许系统调整　false不允许系统调整

void	setEnableSystemMove (bool enableSystemMove)
	DMainWindow::setEnableSystemMove 设定时候允许系统移动窗口 enableSystemMove　true允许移动　false不允许移动

void	setEnableBlurWindow (bool enableBlurWindow)
	DMainWindow::setEnableBlurWindow　设置窗口模糊效果

void	setAutoInputMaskByClipPath (bool autoInputMaskByClipPath)
	通过裁剪区域自动设定mask. 更多...

void	sendMessage (const QIcon &icon, const QString &message)
	发送浮动消息. 更多...

void	sendMessage (DFloatingMessage *message)
	发送浮动消息. 更多...

void	setTitlebarShadowEnabled (bool titlebarShadowEnabled)

信号
void	windowRadiusChanged ()

void	borderWidthChanged ()

void	borderColorChanged ()

void	shadowRadiusChanged ()

void	shadowOffsetChanged ()

void	shadowColorChanged ()

void	clipPathChanged ()

void	frameMaskChanged ()

void	frameMarginsChanged ()

void	translucentBackgroundChanged ()

void	enableSystemResizeChanged ()

void	enableSystemMoveChanged ()

void	enableBlurWindowChanged ()

void	autoInputMaskByClipPathChanged ()

Public 成员函数
	DMainWindow (QWidget *parent=0)
	DMainWindow::DMainWindow constructs an instance of DMainWindow parent is passed to QMainWindow construtor.

DTitlebar *	titlebar () const
	DMainWindow::titlebar 更多...

bool	isDXcbWindow () const
	DMainWindow::isDXcbWindow 更多...

int	windowRadius () const

int	borderWidth () const

QColor	borderColor () const

int	shadowRadius () const

QPoint	shadowOffset () const

QColor	shadowColor () const

QPainterPath	clipPath () const

QRegion	frameMask () const

QMargins	frameMargins () const

bool	translucentBackground () const

bool	enableSystemResize () const
	DMainWindow::enableSystemResize 更多...

bool	enableSystemMove () const

bool	enableBlurWindow () const

bool	autoInputMaskByClipPath () const

bool	titlebarShadowIsEnabled () const

Protected 成员函数
	DMainWindow (DMainWindowPrivate &dd, QWidget *parent=0)

void	mouseMoveEvent (QMouseEvent *event) override

void	resizeEvent (QResizeEvent *event) override

void	changeEvent (QEvent *event) override

属性
int	windowRadius
	This property holds the radius of the main window.

int	borderWidth
	This property holds the width of the main window's border.

QColor	borderColor
	This property holds the color of the main window's border.

int	shadowRadius
	This property holds the shadow radius of the main widnow.

QPoint	shadowOffset
	This property holds the offset applied on the window shadow.

QColor	shadowColor
	This property holds the color of the window shadow.

QPainterPath	clipPath
	This property holds the custom QPainterPath to be used to clip the window. 更多...

QRegion	frameMask
	This property holds the mask to be applied on the window. 更多...

QMargins	frameMargins

bool	translucentBackground
	This property holds whether the window has translucent background.

bool	enableSystemResize

bool	enableSystemMove
	This property holds whether the window can be moved by the user. 更多...

bool	enableBlurWindow
	This property holds whether the window background is blurred.

bool	autoInputMaskByClipPath
	This property holds whether the user input is masked by the clip path. 更多...

bool	titlebarShadowEnabled
	titleBar阴影属性. 更多...

详细描述

The DMainWindow class provides a main application window.

\inmodule dtkwidget

A main window provides a framework for building an application's user interface. DMainWindow has its own layout compared to QMainWindow, it has only title bar and content area, simpler and cleaner.

Developers can provide customized title bar and content to make the application rich functional.

成员函数说明

◆ enableSystemResize()

bool Dtk::Widget::DMainWindow::enableSystemResize ( ) const

DMainWindow::enableSystemResize

返回: This property holds whether the window can be resized by the user.

The default value of this property is true.

You can set this property to false and implement the resize polizy of this window by you self.

◆ isDXcbWindow()

bool Dtk::Widget::DMainWindow::isDXcbWindow ( ) const

DMainWindow::isDXcbWindow

返回: Whether this window is dxcb backended.

Many features like blurred background and window clipping are supported only if the window is using the dxcb Qt platform plugin.

◆ sendMessage [1/2]

void Dtk::Widget::DMainWindow::sendMessage	(	const QIcon &	icon,
		const QString &	message
	)

slot

发送浮动消息.

icon 消息展示图标 message　消息内容

◆ sendMessage [2/2]

void Dtk::Widget::DMainWindow::sendMessage ( DFloatingMessage * message )

slot

发送浮动消息.

message　DFloatingMessage消息

◆ setAutoInputMaskByClipPath

void Dtk::Widget::DMainWindow::setAutoInputMaskByClipPath ( bool autoInputMaskByClipPath )

slot

通过裁剪区域自动设定mask.

autoInputMaskByClipPath true自动设定　false不自动设定

◆ titlebar()

DTitlebar * Dtk::Widget::DMainWindow::titlebar ( ) const

DMainWindow::titlebar

返回: a DTitlebar instance used by the main window.

属性说明

◆ autoInputMaskByClipPath

Dtk::Widget::DMainWindow::autoInputMaskByClipPath

readwrite

This property holds whether the user input is masked by the clip path.

Sometimes you may want to handle events happening in the areas that are visually clipped by the setting DMainWindow::clipPath.

The default value of this property is true.

◆ clipPath

Dtk::Widget::DMainWindow::clipPath

readwrite

This property holds the custom QPainterPath to be used to clip the window.

By default DMainWindow is clipped as a corner-rounded rectangle, but you can supply a custom QPainterPath to do custom shaped window.

参见: DMainWindow::frameMask

◆ enableSystemMove

Dtk::Widget::DMainWindow::enableSystemMove

readwrite

This property holds whether the window can be moved by the user.

The default value of this property is true.

You can set this property to false and choose the effective area to drag and move.

◆ frameMask

Dtk::Widget::DMainWindow::frameMask

readwrite

This property holds the mask to be applied on the window.

For better clip quality, for example antialiasing, use property DMainWindow::clipPath instead.

◆ titlebarShadowEnabled

Dtk::Widget::DMainWindow::titlebarShadowEnabled

readwrite

titleBar阴影属性.

用于设置或者判断是否设置titleBar阴影属性.

该类的文档由以下文件生成:

include/dtkwidget/widgets/dmainwindow.h
src/widgets/dmainwindow.cpp
