Dtk::Core::DSettingsBackend类 参考

DSettingsBackend is interface of DSettings storage class. 更多...

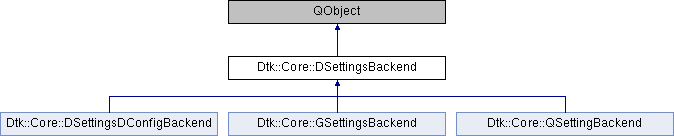

类 Dtk::Core::DSettingsBackend 继承关系图:

信号
void	optionChanged (const QString &key, const QVariant &value)
	emitted when option value changed. 更多...
void	sync ()
	private signal, please do not use it. 更多...
void	setOption (const QString &key, const QVariant &value)
	private signal, please do not use it. 更多...

Public 成员函数
	DSettingsBackend (QObject *parent=Q_NULLPTR)
virtual QStringList	keys () const =0
	return all key of storage. 更多...
virtual QVariant	getOption (const QString &key) const =0
	get value by key. 更多...
virtual void	doSync ()=0
	do the real sync action. 更多...

Protected 成员函数
virtual void	doSetOption (const QString &key, const QVariant &value)=0
	write key / value to storage. 更多...

详细描述

DSettingsBackend is interface of DSettings storage class.

\inmodule dtkcore

Simaple example:

{
    "groups": [{
        "key": "base",
        "name": "Basic settings",
        "groups": [{
                "key": "open_action",
                "name": "Open Action",
                "options": [{
                        "key": "alway_open_on_new",
                        "type": "checkbox",
                        "text": "Always Open On New Windows",
                        "default": true
                    },
                    {
                        "key": "open_file_action",
                        "name": "Open File:",
                        "type": "combobox",
                        "default": ""
                    }
                ]
            },
            {
                "key": "new_tab_windows",
                "name": "New Tab & Window",
                "options": [{
                        "key": "new_window_path",
                        "name": "New Window Open:",
                        "type": "combobox",
                        "default": ""
                    },
                    {
                        "key": "new_tab_path",
                        "name": "New Tab Open:",
                        "type": "combobox",
                        "default": ""
                    }
                ]
            }
        ]
    }]
}

How to read/write key and value:

\code
// init a storage backend
QTemporaryFile tmpFile;
tmpFile.open();
auto backend = new Dtk::Core::QSettingBackend(tmpFile.fileName());

// read settings from json
auto settings = Dtk::Core::DSettings::fromJsonFile(":/resources/data/dfm-settings.json");
settings->setBackend(backend);

// read value
auto opt = settings->option("base.new_tab_windows.new_window_path");
qDebug() << opt->value();

// modify value
opt->setValue("Test")
qDebug() << opt->value();

参见

Dtk::Core::DSettingsOption

Dtk::Core::DSettingsGroup

Dtk::Core::DSettingsBackend

Dtk::Widget::DSettingsWidgetFactory

Dtk::Widget::DSettingsDialog

成员函数说明

doSetOption()

void Dtk::Core::DSettingsBackend::doSetOption ( const QString &  key, const QVariant &  value  )

protectedpure virtual

write key / value to storage.

设置key对应的值，并使用存储后端进行存储。

doSync()

void Dtk::Core::DSettingsBackend::doSync ( )

pure virtual

do the real sync action.

开始进行同步。

getOption()

QVariant Dtk::Core::DSettingsBackend::getOption ( const QString &  key ) const

pure virtual

get value by key.

获取 key 对应的值。

在 Dtk::Core::DSettingsDConfigBackend, Dtk::Core::GSettingsBackend , 以及 Dtk::Core::QSettingBackend 内被实现.

keys()

QStringList Dtk::Core::DSettingsBackend::keys ( ) const

pure virtual

return all key of storage.

返回全部键值。

在 Dtk::Core::DSettingsDConfigBackend, Dtk::Core::GSettingsBackend , 以及 Dtk::Core::QSettingBackend 内被实现.

optionChanged

void Dtk::Core::DSettingsBackend::optionChanged ( const QString &  key, const QVariant &  value  )

signal

emitted when option value changed.

DSettingsOption的值发生变化时发出的信号.

key 发生改变的 option 键，value 对应键的值.

setOption

void Dtk::Core::DSettingsBackend::setOption ( const QString &  key, const QVariant &  value  )

signal

private signal, please do not use it.

私有信号，请勿使用.

sync

void Dtk::Core::DSettingsBackend::sync ( )

signal

private signal, please do not use it.

私有信号，请勿使用。

---

该类的文档由以下文件生成:

• src/settings/dsettingsbackend.h
• src/settings/dsettings.cpp
